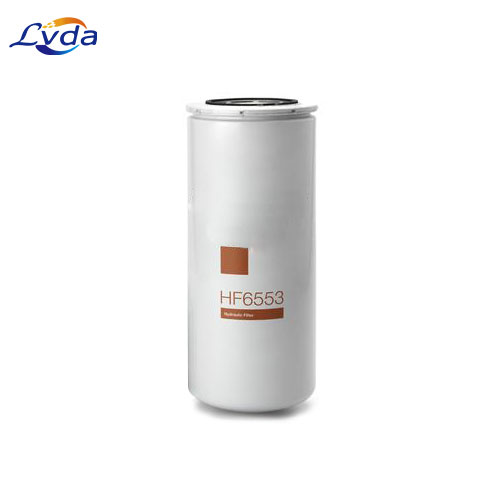

HF6553 Spin On Hydraulic Filter
- HF6553
HF6553 Hydraulic interchangeable filter elements are used to replace existing OEM filters in hydraulic systems when they become full or dirty.
7*24 Customer Service. Shipped Within 3 Days.
HF6553 Cartridge filter elements are used to replace worn, damaged, or dirty OEM cartridge elements of the same size. Hydraulic filter elements get dirty as a normal part of the filtering process and need to be changed to ensure the system is functioning as intended. Filters can also be changed to meet cleaning needs, such as when higher or lower filter ratings are desired.
easy to use:easy to install,Standardized manufacturing and quality material to ensure excellent performance and excellent service life.
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| Thread Size | 1 3/8-12 UNF-2B |
| Length / Overall Height | 9.45 inch |
| Media Type | Wiremesh |
| Length | 9.45 inch |
| Largest OD | 3.95 inch |
| Gasket Inside Diameter | 2.51 inch |
| Gasket OD | 2.79 inch |
| Seam OD | 3.95 in |
| TWA MICRON @ BETA=2 | 3 micron |
| TWA MICRON @ BETA=20 | 8 micron |
| TWA MICRON @ BETA=200 | 13 micron |
| TWA MICRON @ BETA=75 | 11 micron |
