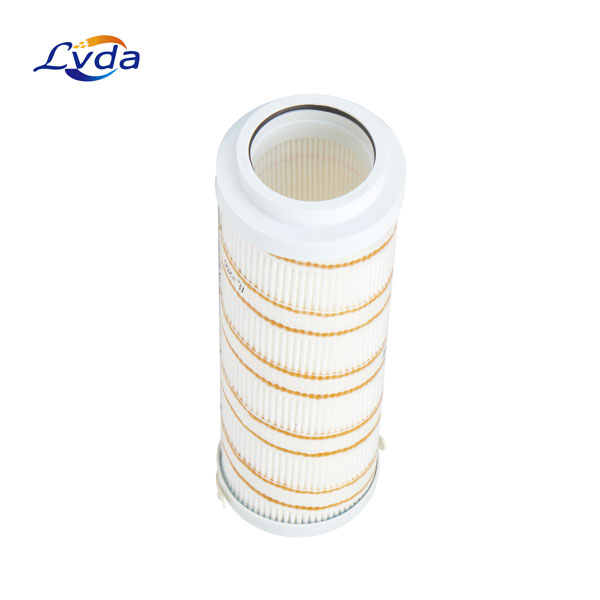

HF35015 Hydraulic Coreless Filter

HF35015 Hydraulic Coreless Filter

$68.78
Model Number :
  • HF35015
  • AK3570
  • 58E6000050

HF35015 filter meets or exceeds the equipment OEM quality and performance

Note:The marked price is for reference only, contact us to get the latest offer

7*24 Customer Service. Shipped Within 3 Days.

HF35015 Hydraulic filer element is an important component of the hydraulic system used to filter out particles and rubber impurities in the system and ensure the cleanness of the hydraulic system.

Advantage

An economical true equivalent in fit, form, and function

Ideal for any critical hydraulic filter applications

Maximum performance replacement filter elements that typically exceeds OEM interchange

Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.

End 2 ID2.42 inch
End 1 ID2.53 inch
Largest OD4.12 in
Length12.31 inch
End 2 OD3.83 inch
TWA MICRON @ BETA=21 micron
TWA MICRON @ BETA=207.2 micron
TWA MICRON @ BETA=20012 micron
TWA MICRON @ BETA=759.5 micron
Efficiency Test StdISO 4572
Particle Size at Beta 20011.5 Micron
Particle Size at Beta 7510.1 Micron
Rated Flow207.8 L/m
Element Collapse/Burst, Min1379 kPa
