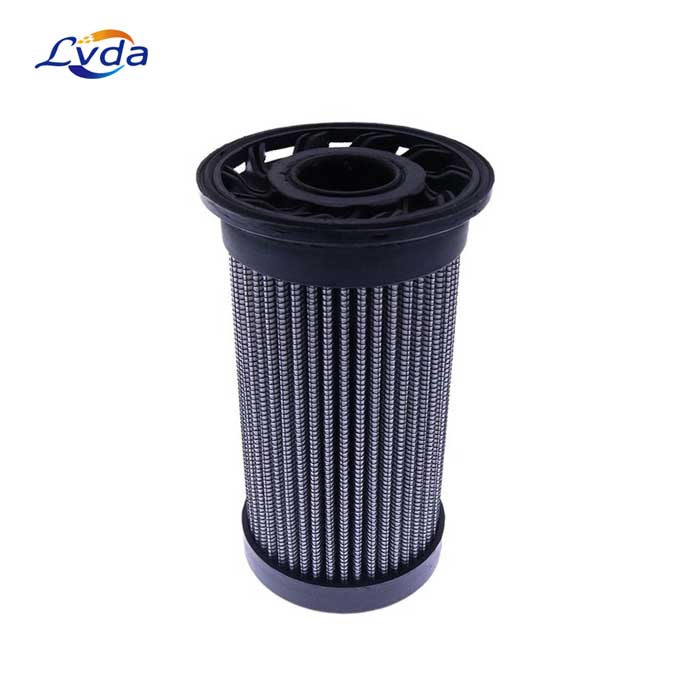

P575347 Hydraulic Filter Cartridge

P575347 Hydraulic Filter Cartridge

$35.40
Model Number :
  • P575347

P575347 Outer Diameter:72 mm (2.83 inch), Inner Diameter:27.9 mm (1.10 inch), Length:121.4 mm (4.78 inch), Gasket OD:32.05 mm (1.26 inch), Gasket ID:24.99 mm (0.98 inch), Overall Length:124.2 mm (4.89 inch)

Note:The marked price is for reference only, contact us to get the latest offer

7*24 Customer Service. Shipped Within 3 Days.

Improve the Power: Able to largely reduce the friction and wearing, the oil filter can also reduce oil consumption for stable power supply.

Premium Filtering: The suction strainer can better filter out the pollutant and water to improve the oil quality, very safe and reliable.

Easy Installation: Light in weight as compact in size as well, the oil pickup filter element is very convenient to install in minutes.

Stable in Working: Designed to have large effective filtration area, the oil pickup filter enables high flowing rate and great efficiency.

Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.

Outer Diameter72 mm (2.83 inch)
Inner Diameter27.9 mm (1.10 inch)
Length121.4 mm (4.78 inch)
Gasket OD32.05 mm (1.26 inch)
Gasket ID24.99 mm (0.98 inch)
Overall Length124.2 mm (4.89 inch)
Efficiency Beta 20011.5 micron
Efficiency Beta 100015 micron
Bypass Valve Setting HR4.14 bar (60 psi)
Collapse Burst10.3 bar (149 psi)
Maximum Operating Temperature107 °C (225 °F)
